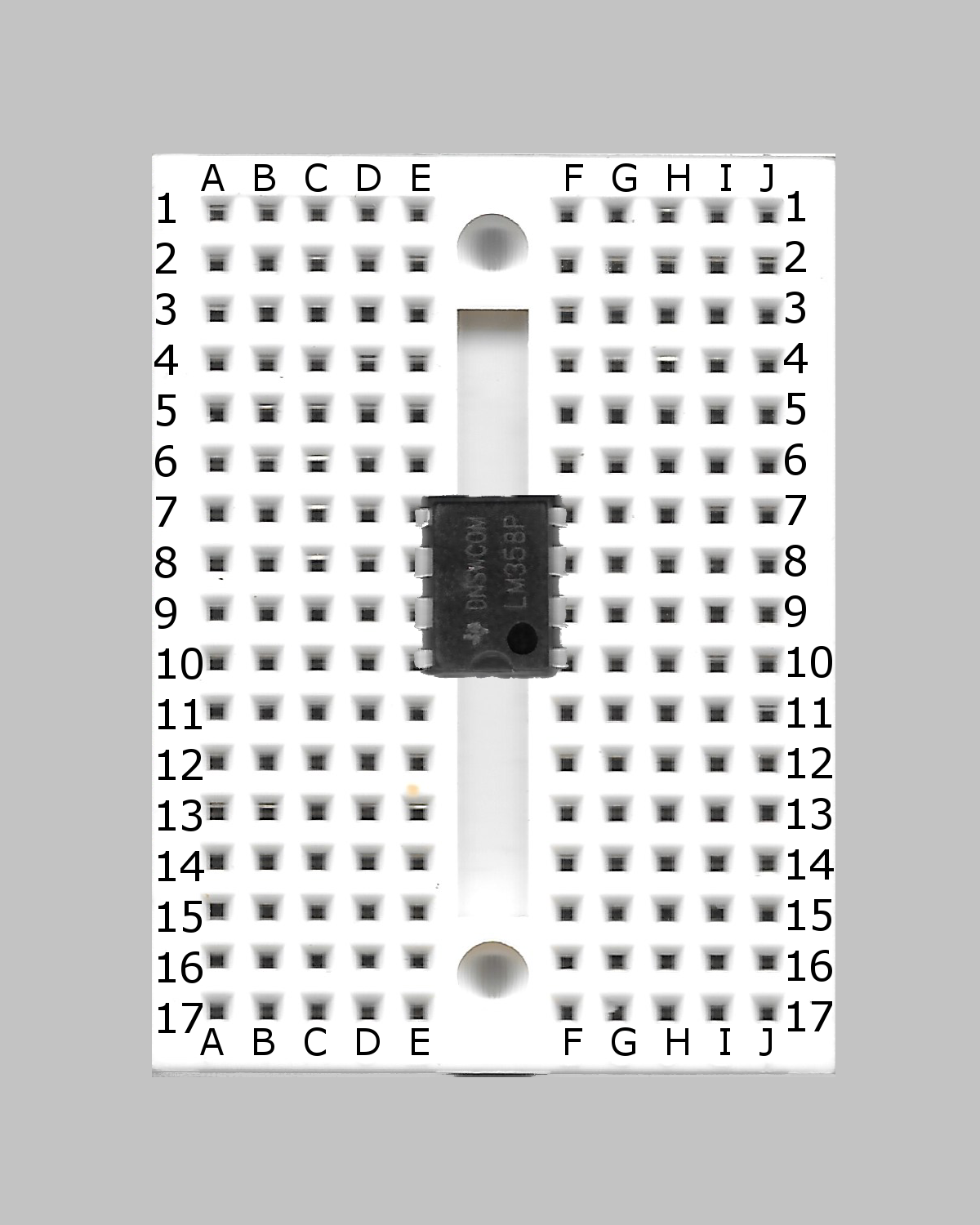

   The proto board comes with the LM358 op-amp already installed.

---

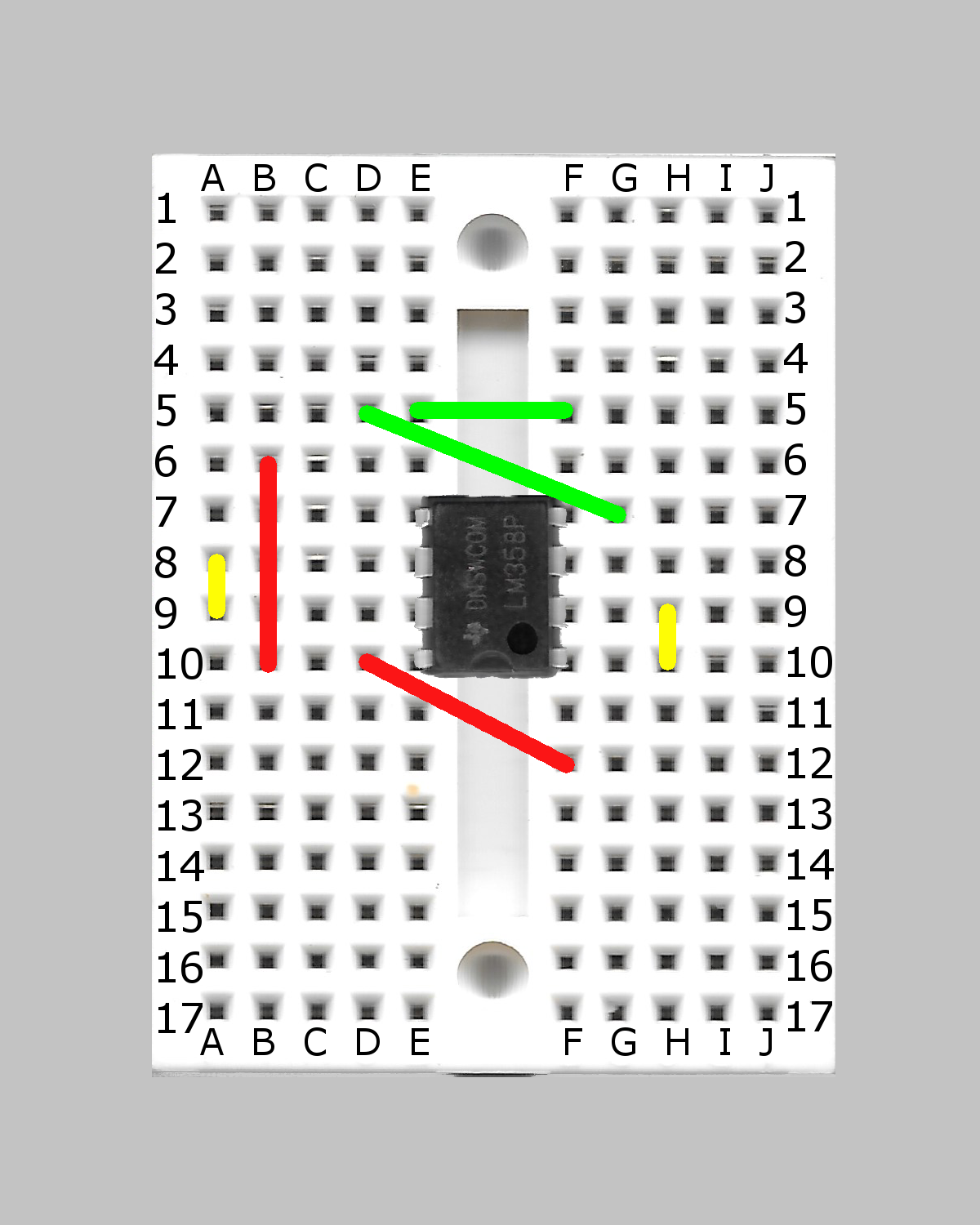

   First install the jumpers as shown:
   You will be using bare tinned copper wire for the jumpers.
   The jumpers on the illustration are shown in color to indicate their function:
   RED indicates positive 9 volt power jumpers.
   GREEN indicates negative 9 volt power and ground jumpers.
   YELLOW indicates signal level jumpers.

---

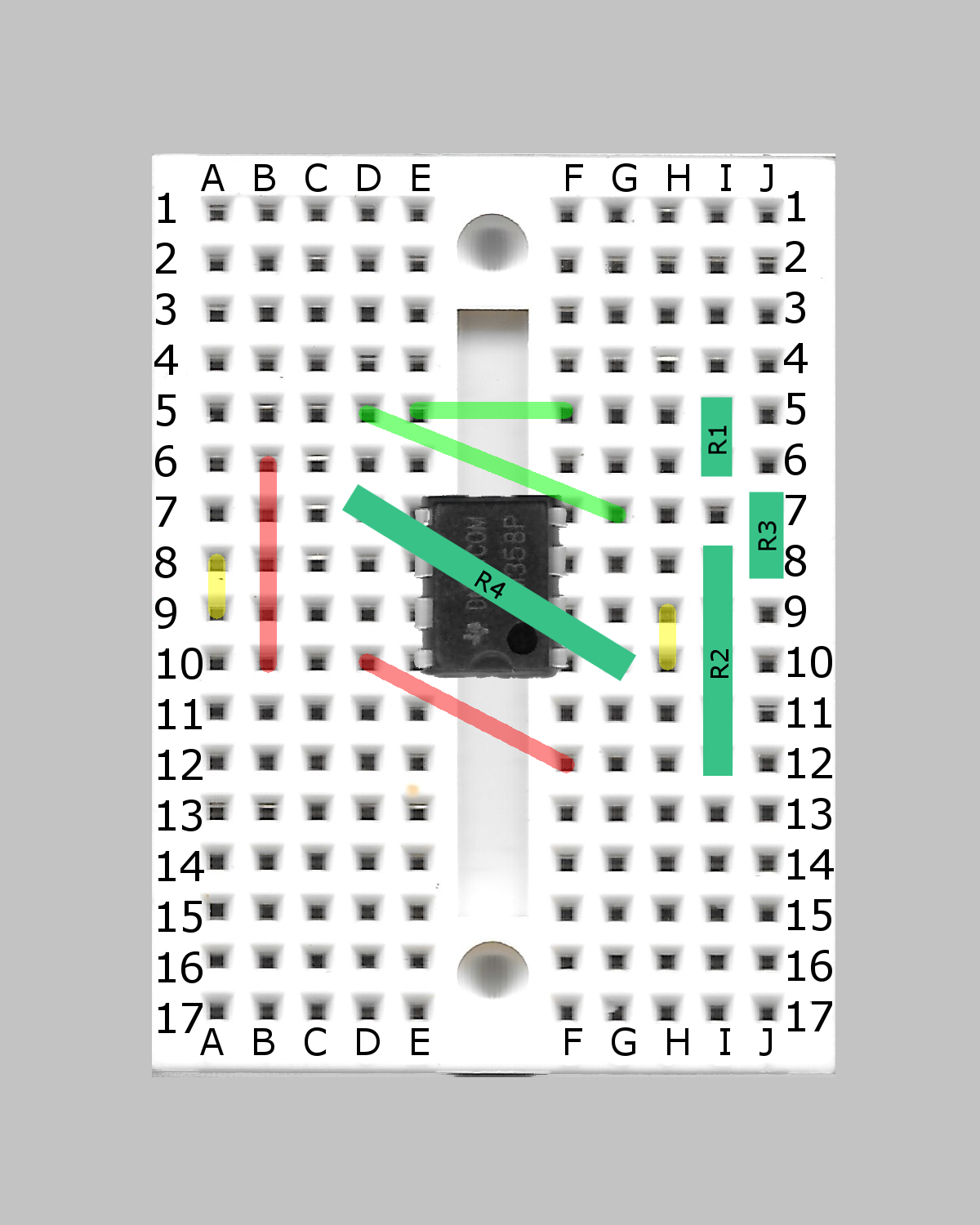

   Next install the resistors as shown.
   Resistors R1 and R3 are installed vertically.
   Resistors R2 and R4 are installed horizontally.

---

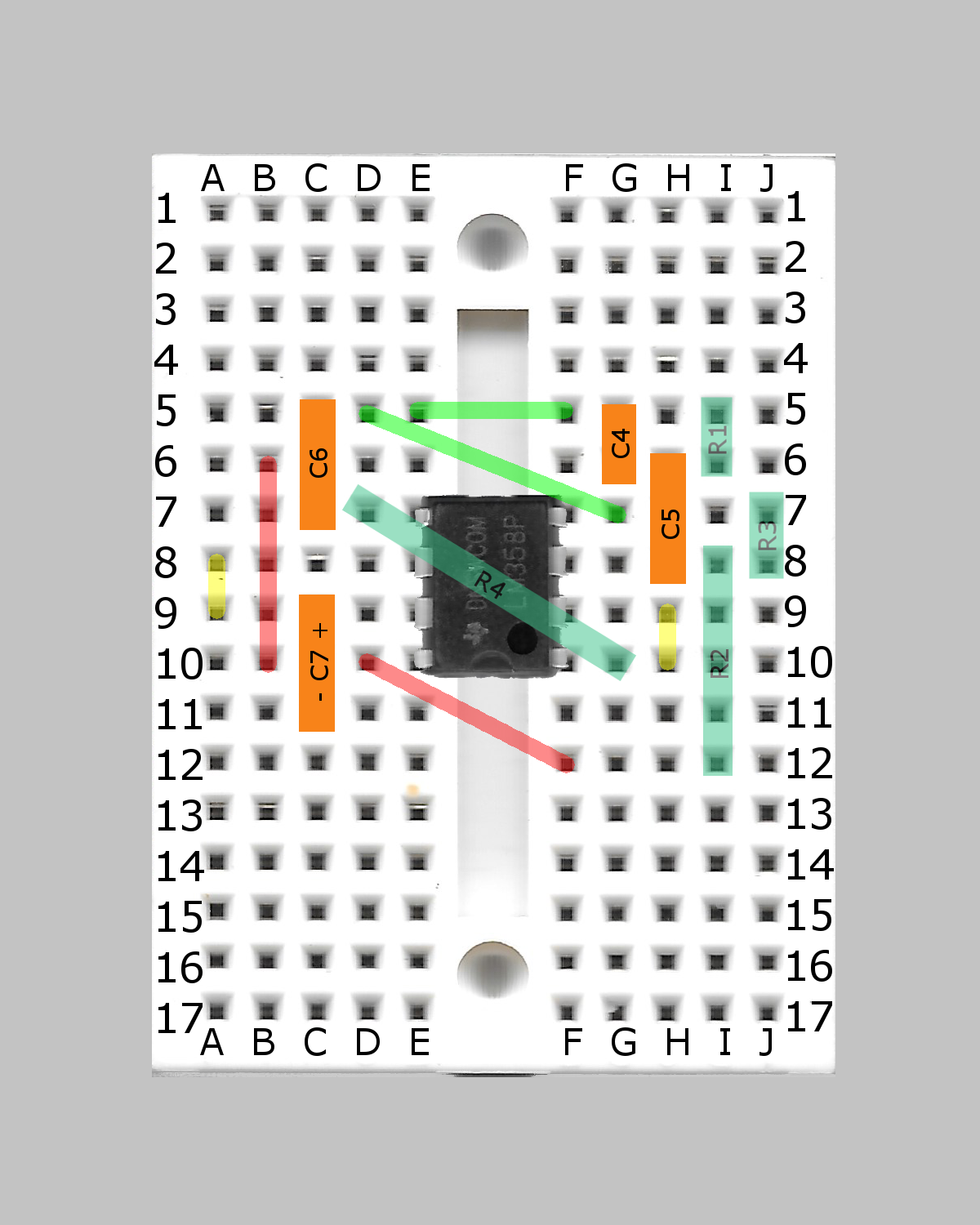

   Next install the capacitors as shown.
   Capacitor C7 is a polarized electrolytic capacitor and must be installed with the negative lead in Row 11.

---

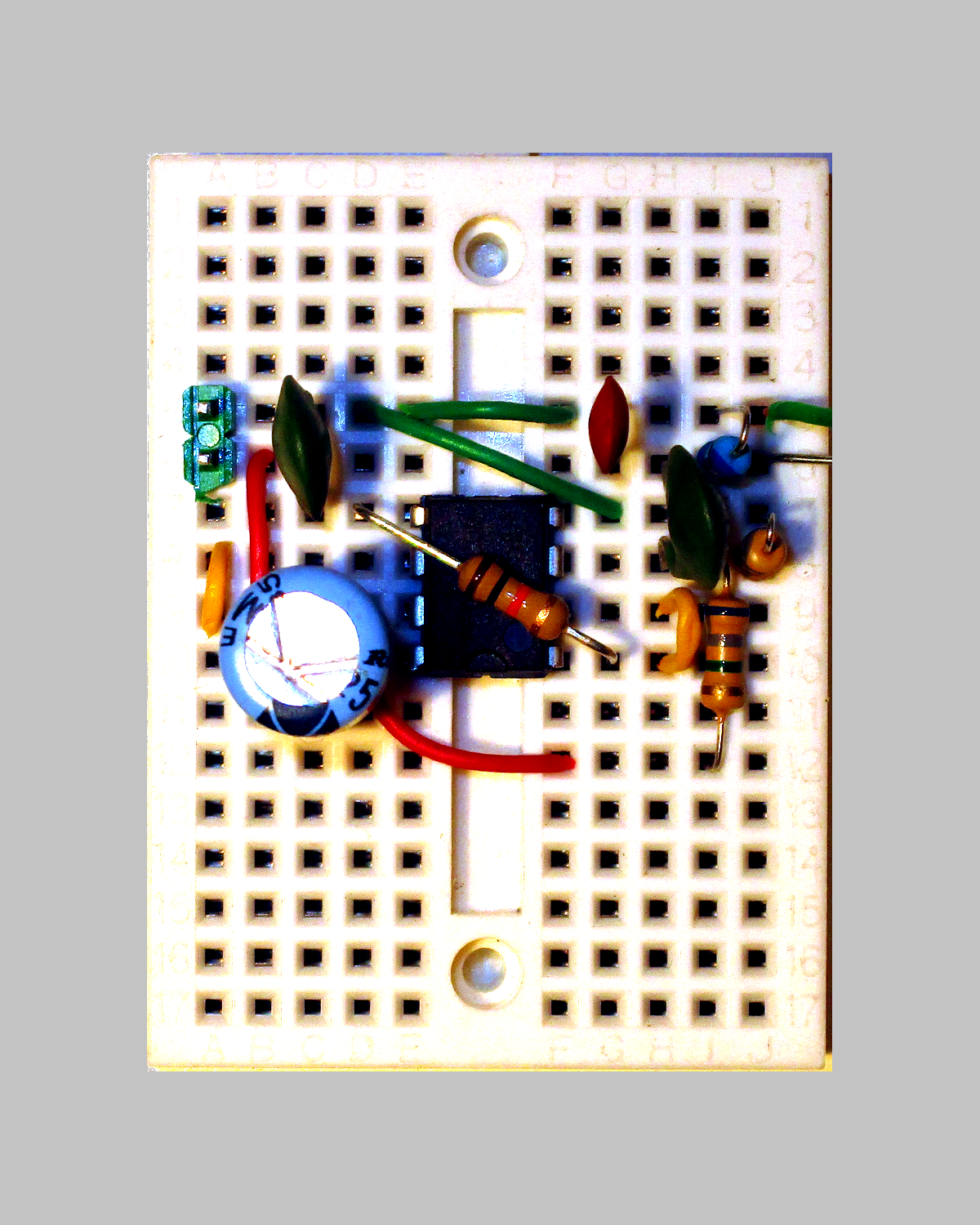

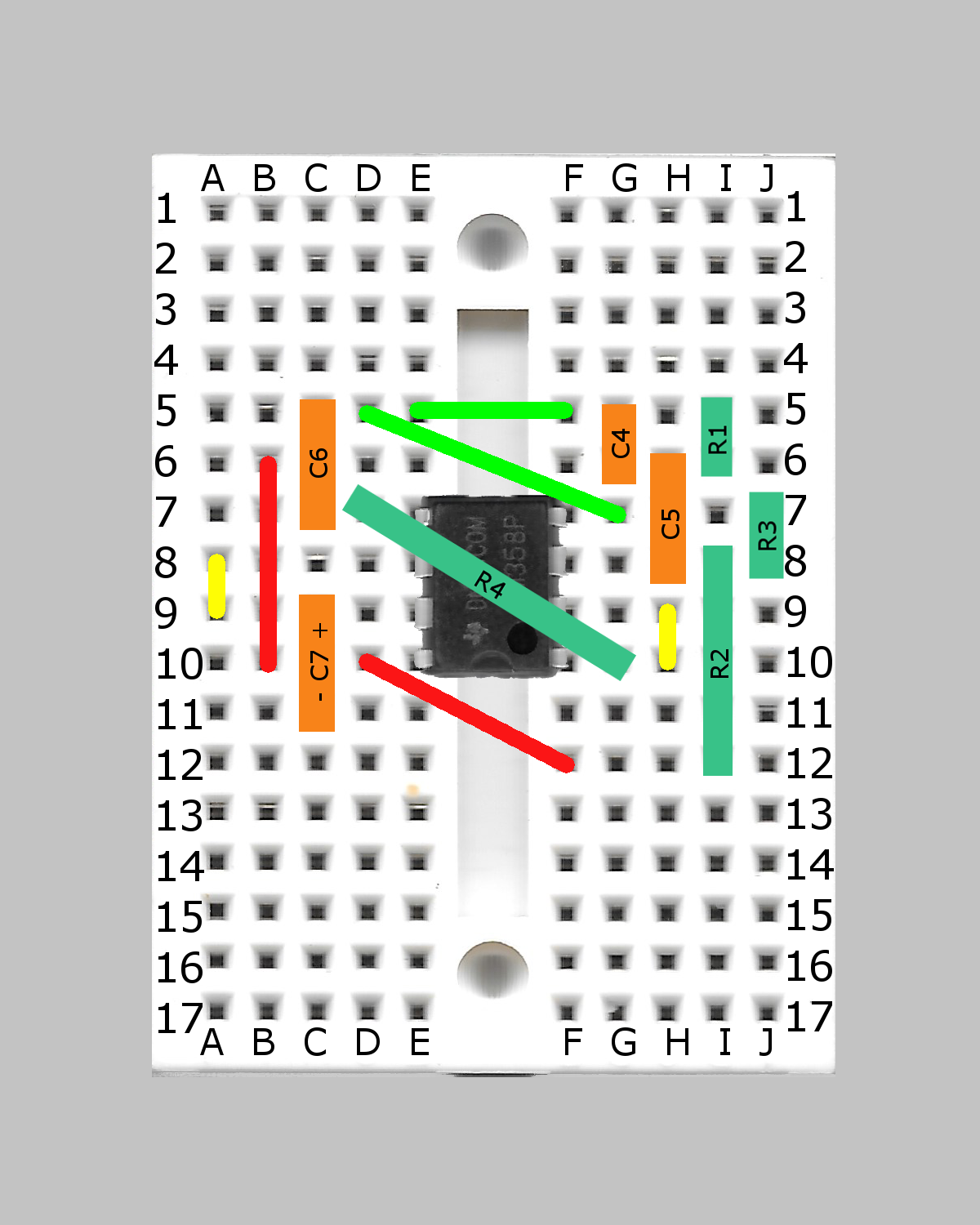

   The completed proto board:

;

---

   Here's the schematic diagram for the crystal set.
